Toeboard Links (T5)
$180.00 – $260.00

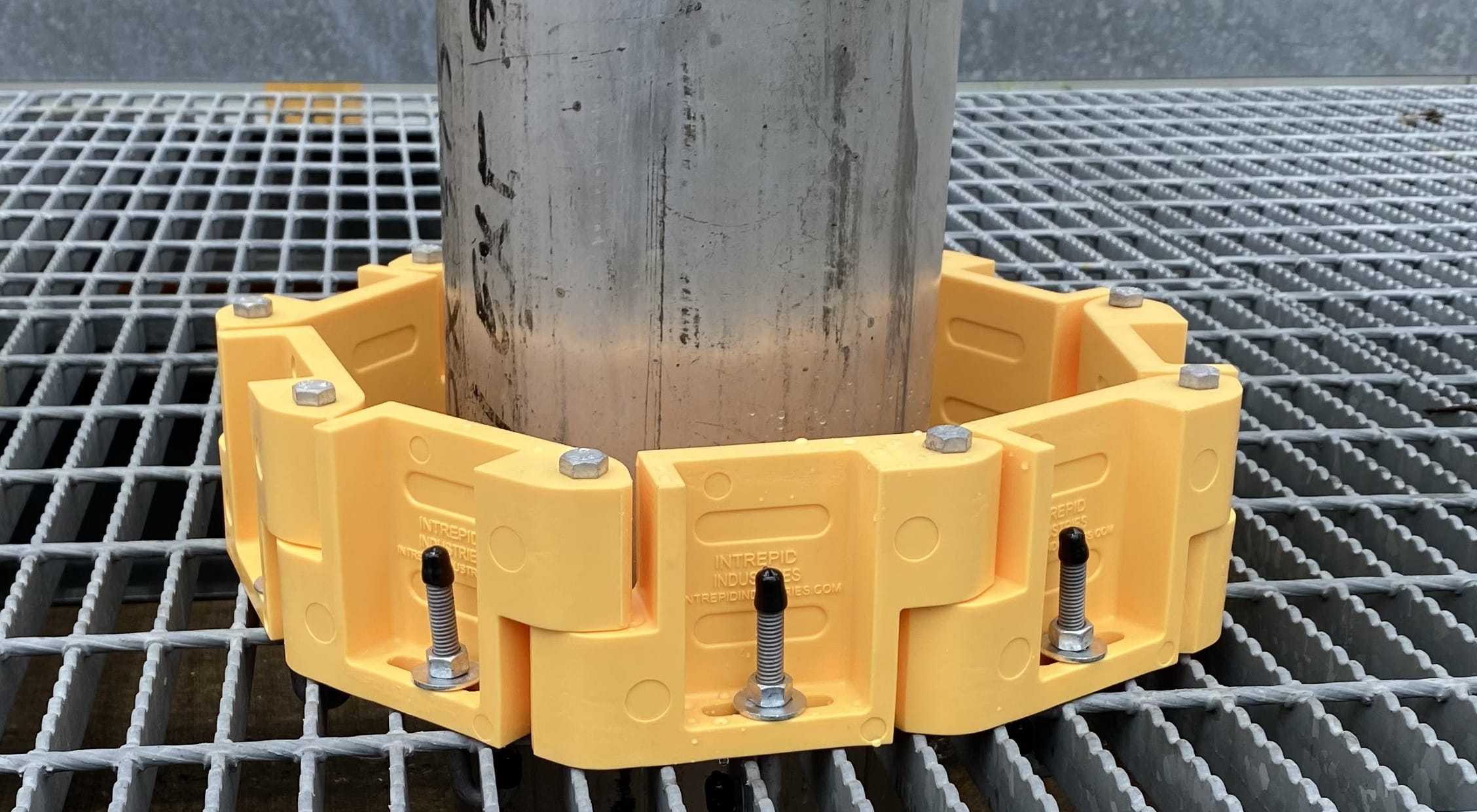

Toeboard Links (T5) are designed to easily enclose unwanted openings, gaps, and penetrations found in walking surface areas. Intrepid Toeboard Links are designed to encircle piping of all sizes found in and around grating and deck plate. The Intrepid Toeboard Links are manufactured from our rigid, noncorrosive polyurethane, making the T5 resistant to outdoor exposure and harsh environments.
Each link effortlessly bolts to the surface from the topside of the grating; therefore, no welding or scaffolding is required. The T5’s snap-in design is not only easy to install but is also easy to unbolt and remove in case a rework is required.
- Enclose field cut penetrations and unsafe openings
- Made of UV-resistant polyurethane
- Colored throughout with safety yellow
- 4” height protection ensuring optimal safety
- Non-corrosive
- Safe & effective closure of gaps and openings
- Maintenance free
- Long service life
- Easy installation
- Economical
| T5-J HDG | T5-J SS316 | T5-L HDG | |
| Quantity | Each | Each | Each |
| 10 – 320 | $18.00 | $26.00 | $18.00 |
| 330 – 1040 | $17.00 | $25.00 | $17.00 |
| 1050 + | $16.00 | $24.00 | $16.00 |
Toeboard Links (T5)
| T5-J HDG | T5-J SS316 | T5-L HDG | |
| Quantity | Each | Each | Each |
| 10 – 320 | $18.00 | $26.00 | $18.00 |
| 330 – 1040 | $17.00 | $25.00 | $17.00 |
| 1050 + | $16.00 | $24.00 | $16.00 |
Videos
General Information
Load Test
Applications
Toeboard Links (T5) Hardware Considerations
MUST BE USED:
T5-J
Square Opening Grating
T5-L
Rectangle Opening I-beam or T-bar Grating
CAN BE USED:
T5-L
OR
T5-J
All Other Rectangular Opening Gratings
Toeboard Link (T5) Images
Toeboard Links (T5) Details & Dimensions
Toeboard Links (T5) Layouts
Toeboard Links (T5) Layouts Achieved With A Box Of 10
Downloads
Toeboard Links (T5) Literature
Includes:
- General Information
- Typical Installation
- Dimensions
- Applications
Toeboard Links (T5) Deflection Data
Includes:
- Summary
- Uniform Load Test
- Point Load Test
- Raw Data
T5 Drawing
JPG Image
PDF Image
DWG (2D) (Right-click & choose “Save Target As” or “Save Link As”)
STP (3D) (Right-click & choose “Save Target As” or “Save Link As”)
Toeboard Link Models T5-J and T5-L Typical Installation Instructions
Layout the T5 pieces around the pipe penetration, and insert the 3/8” x 3 1/2” long bolts through the connecting holes. Thread them, but do not tighten.
Drop J-bolts (L-bolts) in the slots located on the bottom of each T5 piece. Catch one of the grating bars with the J-bolt (L-bolt) and tighten. Do this for all T5 pieces.
Once all the J-bolts (L-bolts) are securely fastened, tighten each of the 3/8” x 3 1/2” bolts in the connecting holes.
FAQ
The T5-J comes with J-bolt hardware. The T5-J will not work on I-beam or T-bar grating. The T5-L comes with L-bolt hardware. The T5-L will not work on grating with square opening. They both will work on all additional types of grating not mentioned above.
This will depend on the surface you are using it on. The T5-J will work on almost all grating that has vertical flat bars, either with square holes or rectangular openings. If you have I-bar or T-bar grating, you will need to use the T5-L. If you want to use them on solid flooring, such as concrete or deck plate, you may have to replace the hardware with anchors or threaded fasteners.
Not necessarily, assuming you have adequate beam support for the walkway grating.
Yes, but you may want to use threaded anchors in place of the J-bolts or L-bolts.
To help you in estimating and ordering, please refer to the table below.
No, not at all. The links are designed to allow top-side installation. Follow the directions and simply drop the J-bolts (L-bolts) down through the grating openings.
Yes, although the safety yellow color is normally acceptable for most purposes. The color is molded throughout the parts, so they should never need painting. However, if desired, the collar surfaces can be wiped clean and painted.
The only effect on the polyurethane material will be some surface discoloration to an amber shade. Aside from this surface effect, the rest of the material does not lose any of its original strength or material properties when exposed to UV light.
- The maximum thickness of grating that can be “sandwiched” between the T5 and the J-bolt or L-bolt is 1 3/4″.
- If thicker grating is used, you will need to replace the standard hardware.
Yes! The T5 pieces can be combined to encircle just about anything (See answer to FAQ #5).
| # of GPC | # of T5’s | |
| GPC-6 | 1 Pair | 6 |
| GPC-10 | 1 Pair | 8 |
| GPC-14 | 1 Pair | 10 |
| GPC-X | 1 Pair | 2 |
| GPC-L | 1 Piece | 2 |
No, the T5 will not work with our previous GPC pieces.
Yes, the polyurethane material from which the links are molded is capable of supporting a load of over 2000 pounds in this fashion.
| Weight (lbs) | 13, 13 |
|---|---|
| Dimensions (L×W×H) (in) | 12×8×4, 12×8×4 |
| Toeboard Type | T5-J Box of 10, T5-L Box of 10 |
