Pedestrian Visual Warning Kit


The PG Visual Warning Kit alerts a distracted driver that a pedestrian is entering into an unprotected area. When a pedestrian opens the gate, the gate will activate a strobe light that provides the visual alert.

This kit is great for pedestrian walkways, forklift traffic, hazardous areas, and machine guarding.

Each kit comes with a warning strobe light, proximity sensor, mounting bracket, and 6ft of cable from the sensor to the light and 6ft of cable from the light to the power adapter.

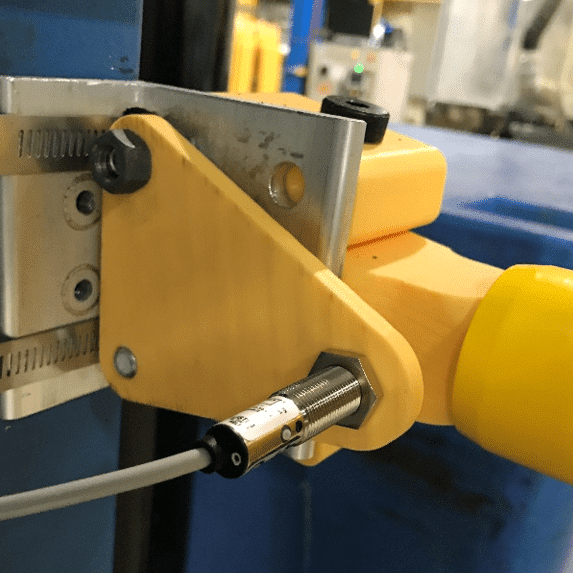

Once the gate is installed, add the sensor bracket to the protruding mounting bolts.  Be sure that the sensor lines up with the gate, as shown below.

Secure the bracket with the supplied 3/8” nut on the top bolt.

Install the sensor facing the gate with the nuts provided on either side of the sensor plate.

Industrial Safety Gates | Swing Safety Gate | OSHA Safety Gate | Swing Safety Gates | OSHA Safety Gate

With the gate closed, plug in the kit and press the gray button on the sensor until the orange light blinks off then back on.

Additional information

Weight 2 lbs
Dimensions 6 × 6 × 3 in

1-24, 25-139, 140+
