Pedestrian Installation Kit

$20.00

Our PG Gate comes standard with hardware to attach to a flat surface.  For attaching to a bollard, pipe or square tube, we make the following installation kit to make this process effortless.

Description

Pedestrian Gate (PG) Kits

PG Installation Kit – Bollard, Pipe and Square Tube

With the help of of our installation kit, the PG Safety Gate easily attaches to the following:

Bollard

Post

The PG Kit is designed to give you the appropriate surface needed for the gate to stop in the closed position.  It has been designed to work on many different types of vertical post.

The Kit comes with the following hardware:
(1) Mounting Bracket
(2) Hose Clamps
(2) Self-Tapping Screws

INSTALLATION INSTRUCTIONS

First, decide whether you prefer to strap the gate on or screw the gate into your bollard/post.  Once that decision has been made, proceed to the desired installation instructions below.

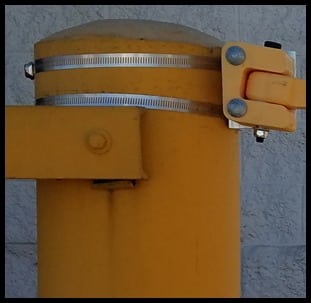

FOR CLAMP INSTALLATION

Place the bracket at the desired height on the inside of the post with the two 1/4″ holes againts the post.  Open each clamp and position around the post and into the bracket slots.  Once the clamps are in position, tighten and trim any access.

With the bracket securely in place, mount the gate using the two supplied 3/8″ carriage bolts.  For this installation, use the two 3/8″ holes 2 1/4″ from the outside edge.

Once the gate is mounted, remove the wing nut(s) and bolt(s) from the horizontal bar(s) to adjust the length of the gate to the desired size.  Once you have adjusted the length of the gate, replace the bolt(s) and wing nut(s).

Widespread Success (UDG)

FOR SCREW INSTALLATION

Place the bracket at the desired height on the inside of the post with the two 1/4″ holes against the post.  Mark the positions for the two 1/4″ holes and drill.  With the bracket in place, use the self-tapping screws to mount the bracket to the post.

With the bracket securely in place, mount the gate using the two supplied 3/8″ carriage bolts.  For this installation, use the two 3/8″ holes 2 1/4″ from the outside edge.

Once the gate is mounted, remove the wing nut(s) and bolt(s) from the horizontal bar(s) to adjust the length of the gate to the desired size.  Once you have adjusted the length of the gate, replace the bolt(s) and wing nut(s).

Widespread Success (UDG)

Additional information

Weight1 lbs
Dimensions7 × 4 × 2 in
