Grating Collars (GPC)
$375.00 – $675.00
Grating Collars (GPC), also known as Pipe Penetration Collars, are designed to easily enclose unwanted openings, gaps and penetrations found in walking-working surface areas.

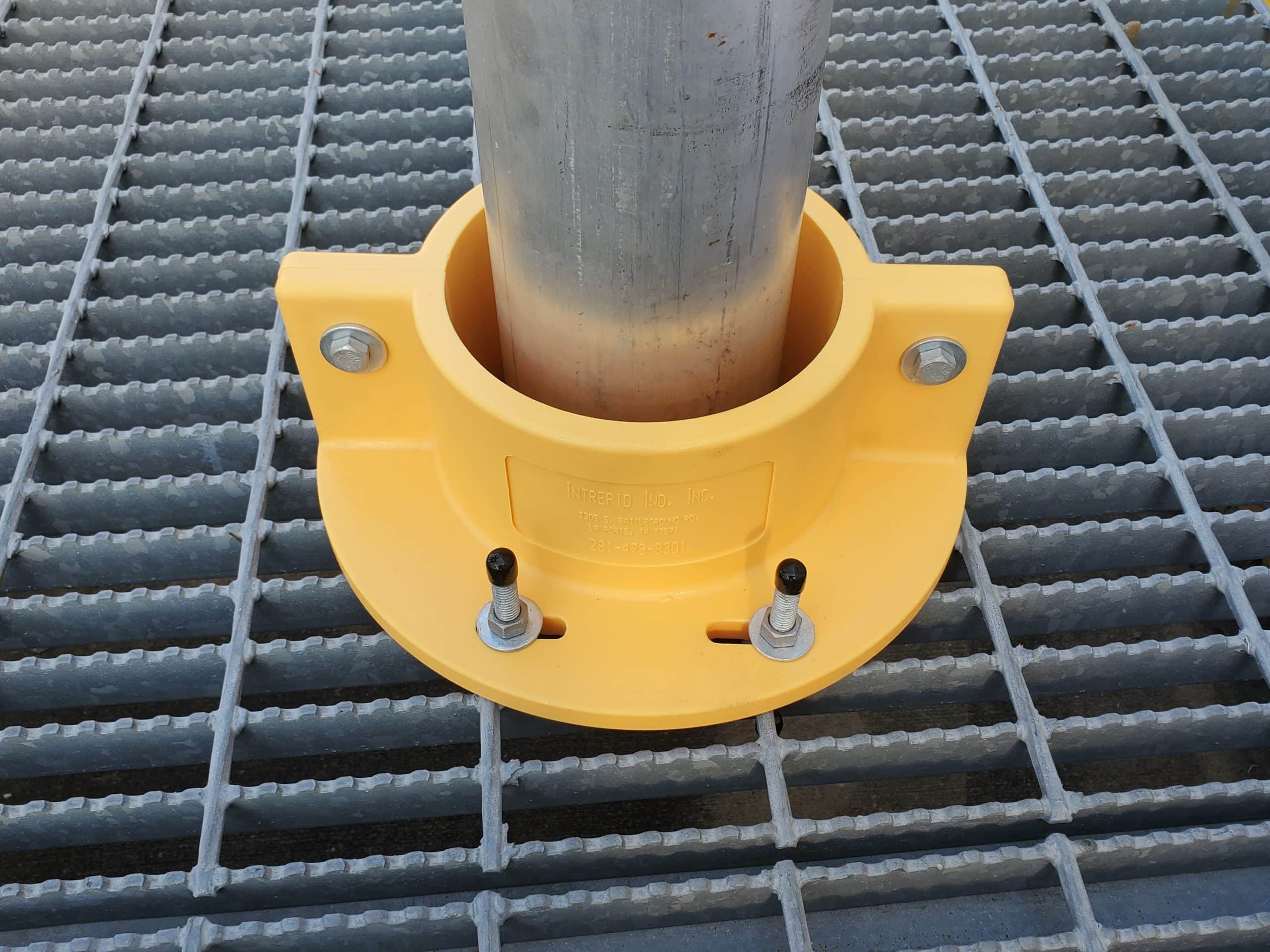

The GPC-6 is designed to encircle 6” openings on grating and deck plate. Each collar effortlessly bolts to the surface from the topside of the grating, using either a J-bolt or L-bolt; therefore, no welding or scaffolding is required. The GPCs bolt-in design is not only easy to install but is also easy to unbolt and remove in case a rework is required. For openings larger than 6″ or odd shapes, please refer to our Toeboard Links. The GPC-6 consists of 2 half round sections.

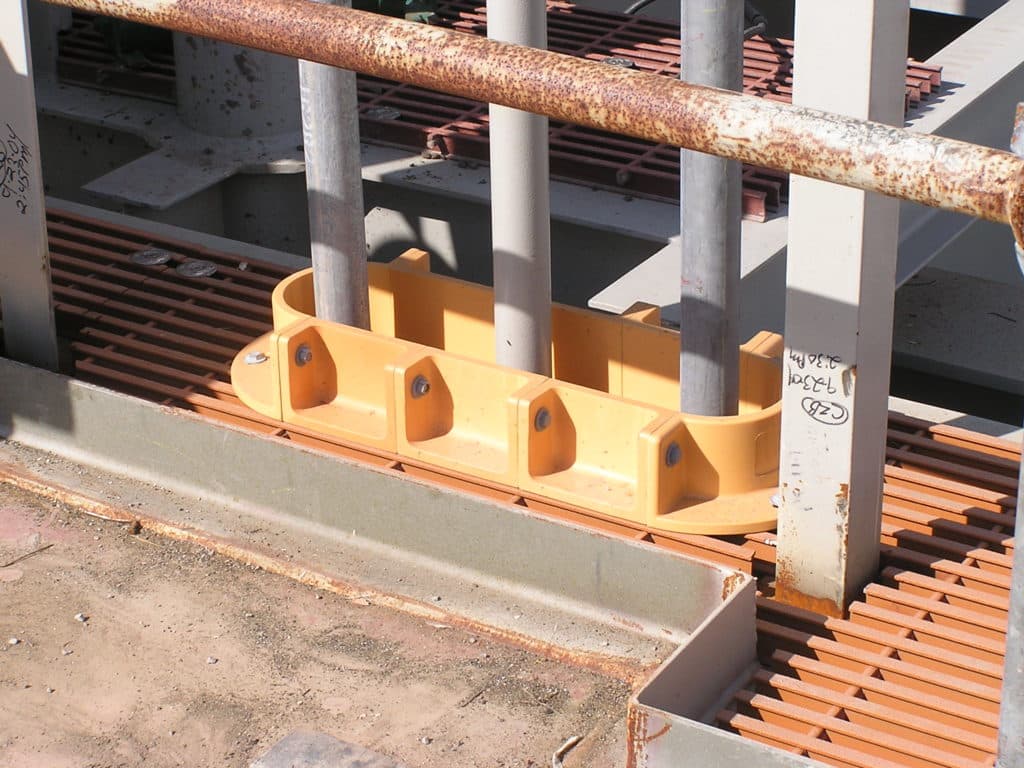

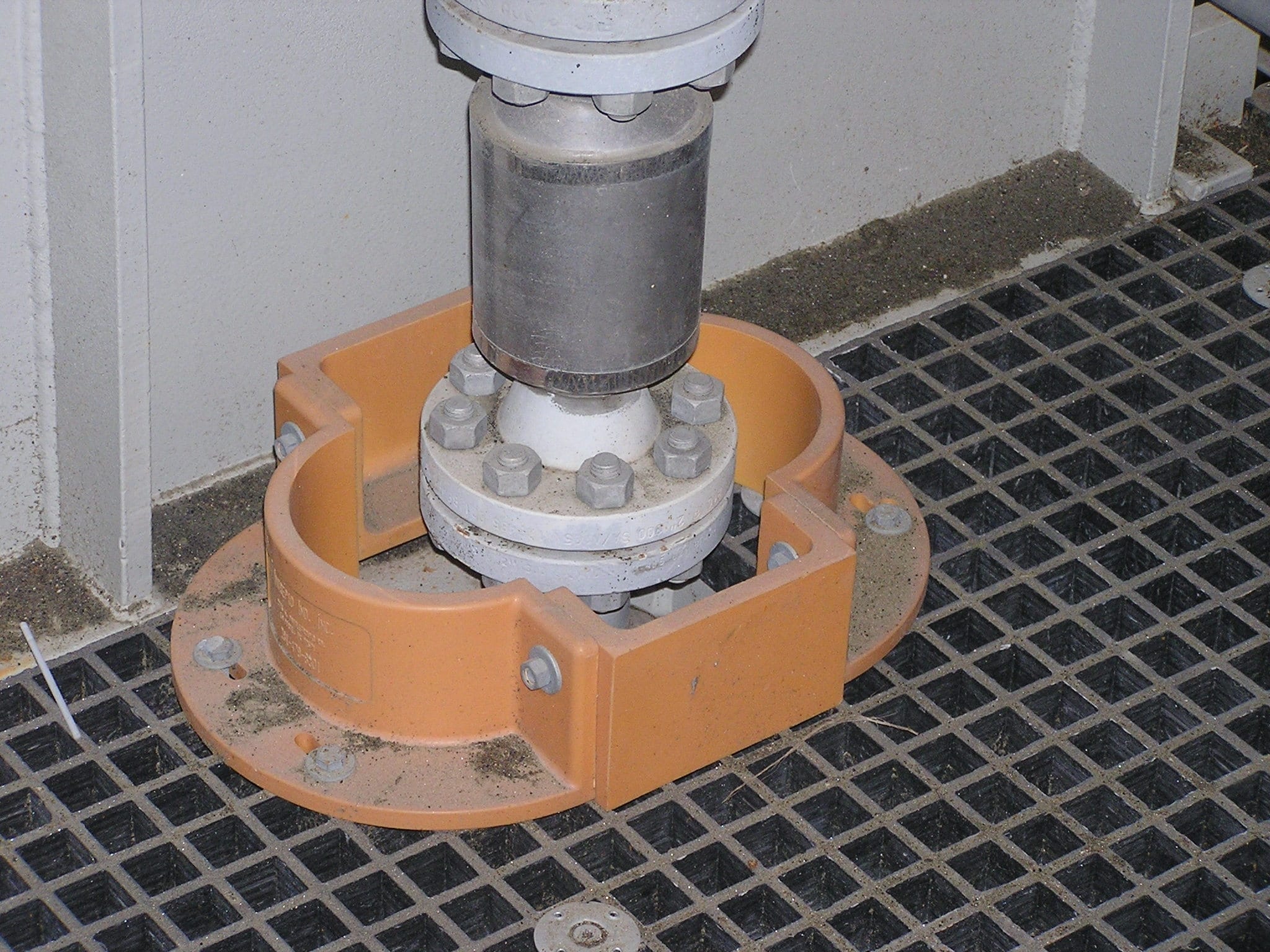

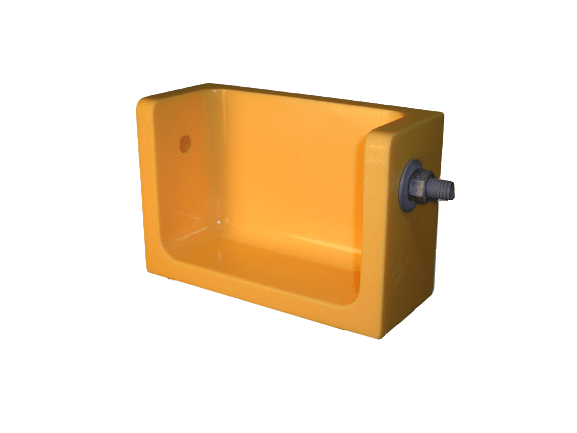

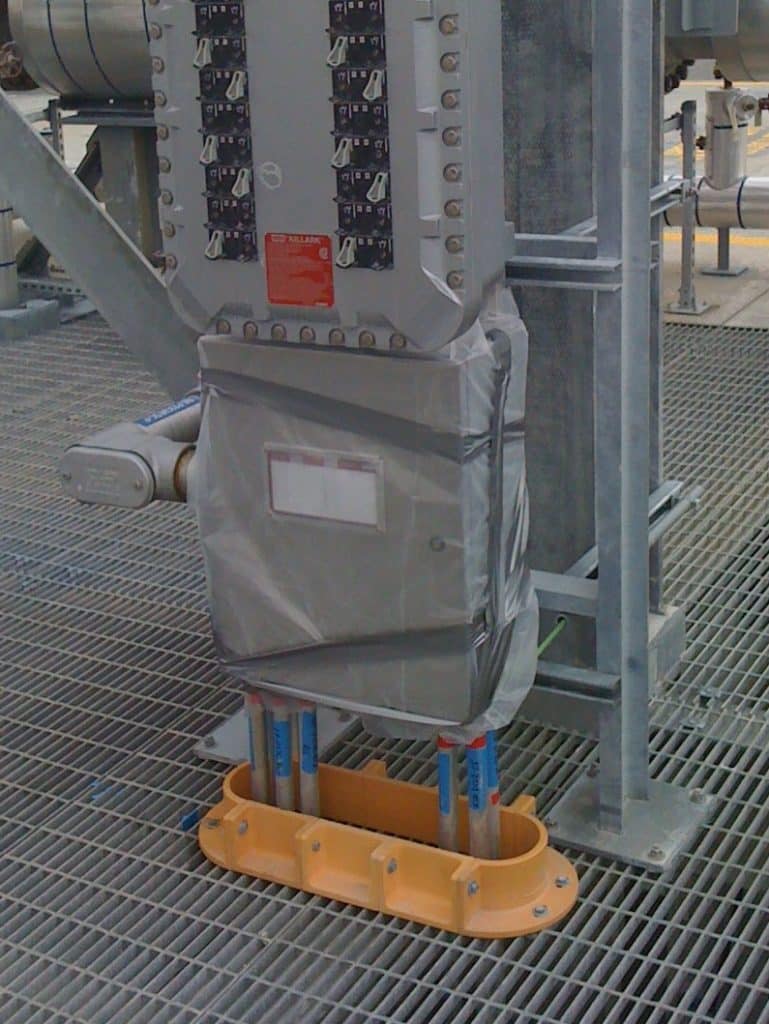

The GPC-X is used to extend the GPC-6 for larger openings.
Both are manufactured from our rigid, noncorrosive polyurethane, making them resistant to outdoor exposure and harsh environments.
- Enclose field cut penetrations and unsafe openings
- Made of UV-resistant polyurethane
- Colored throughout with safety yellow
- 4” height protection ensuring optimal safety
- Non-corrosive
- Safe & effective closure of gaps and openings
- Maintenance free
- Long service life
- Easy installation
- Economical
| GPC-6 | GPC-6 J | GPC-6 L |
| Quantity | Pair | Pair |
| 05 – 115 | $135.00 | $135.00 |
| 120 – 235 | $125.00 | $125.00 |
| 240 + | $115.00 | $115.00 |
| GPC-X | ||
| Quantity | Pair | Pair |
| minimum 50 pieces | $75.00 | $75.00 |
For all product pricing click here.
Grating Collars (GPC)
| GPC-6 | GPC-6 J | GPC-6 L |
| Quantity | Pair | Pair |
| 05 – 115 | $135.00 | $135.00 |
| 120 – 235 | $125.00 | $125.00 |
| 240 + | $115.00 | $115.00 |
| GPC-X | ||
| Quantity | Pair | Pair |
| minimum 50 pieces | $75.00 | $75.00 |

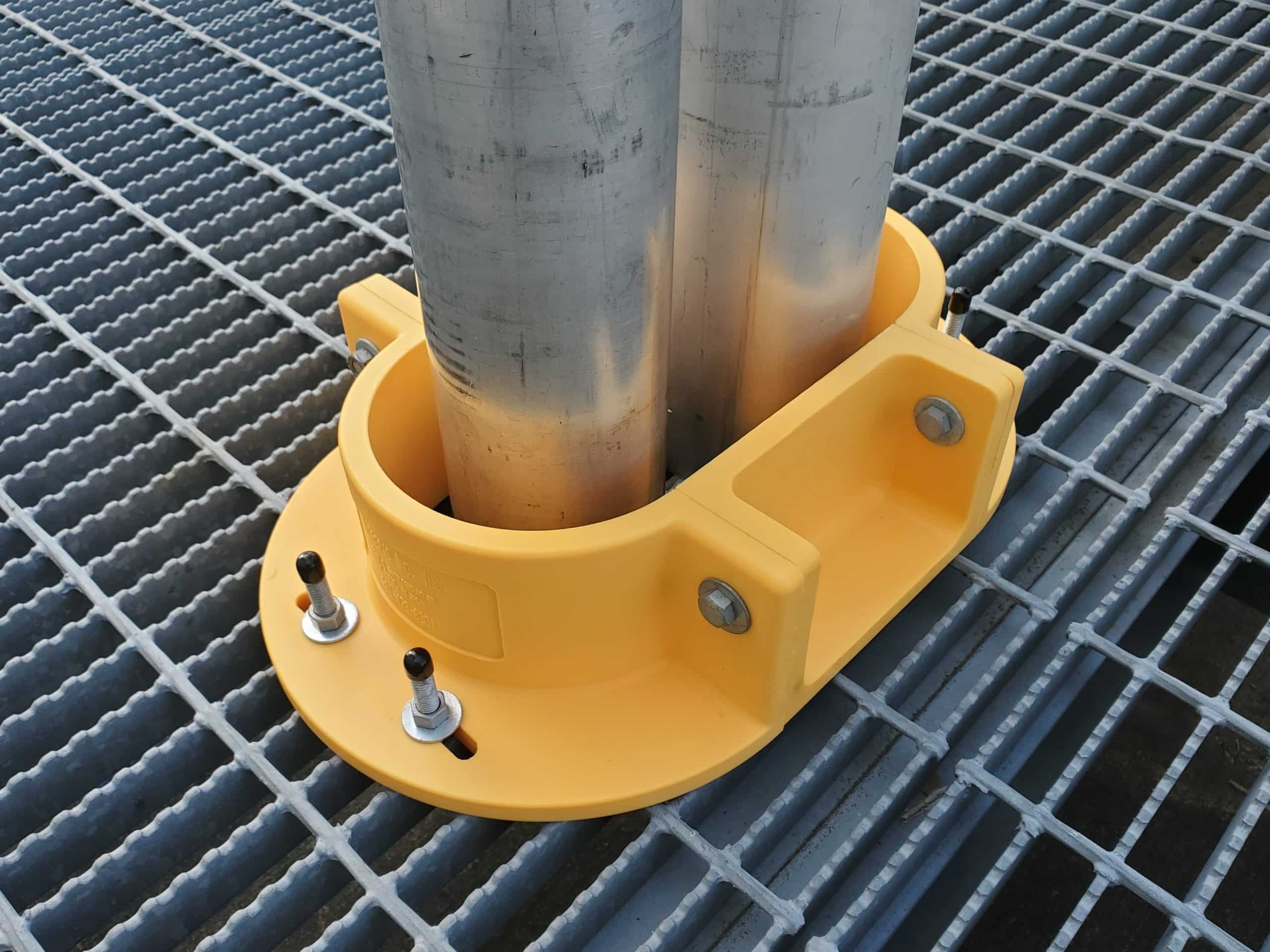

Grating Collar (GPC) Applications
Grating Collar (GPC) Hardware Considerations
MUST BE USED:

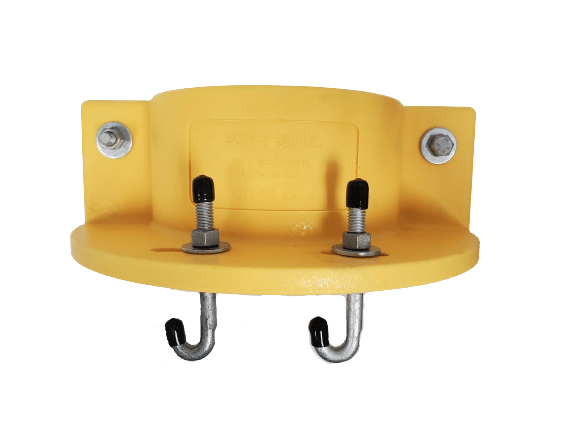

GPC-6J
Square Opening Grating

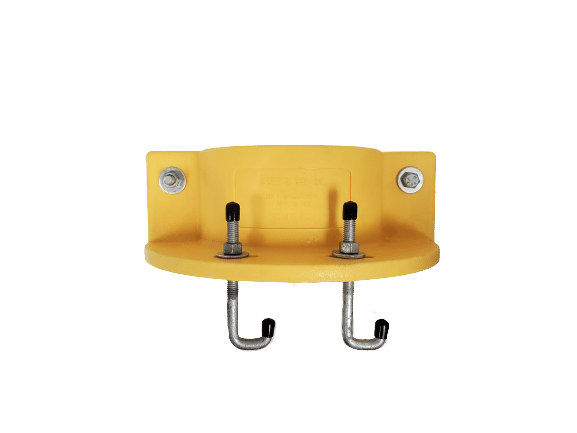

GPC-6L
Rectangle Opening I-beam or T-bar Grating
CAN BE USED:
GPC-6L
OR
GPC-6J
All Other Rectangular Opening Gratings
Grating Collar (GPC) Images

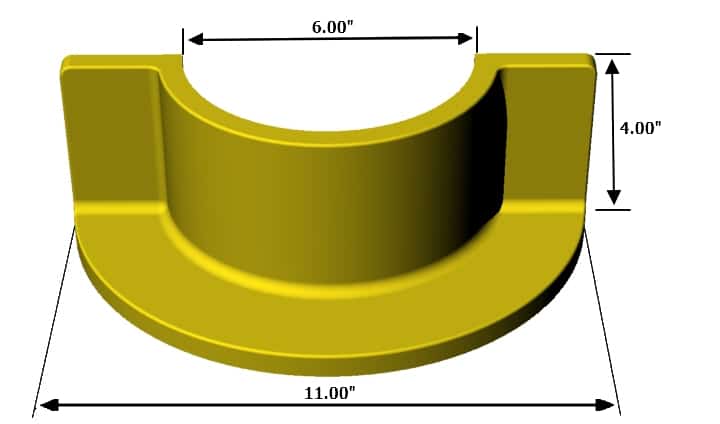

GPC-6 Dimensions

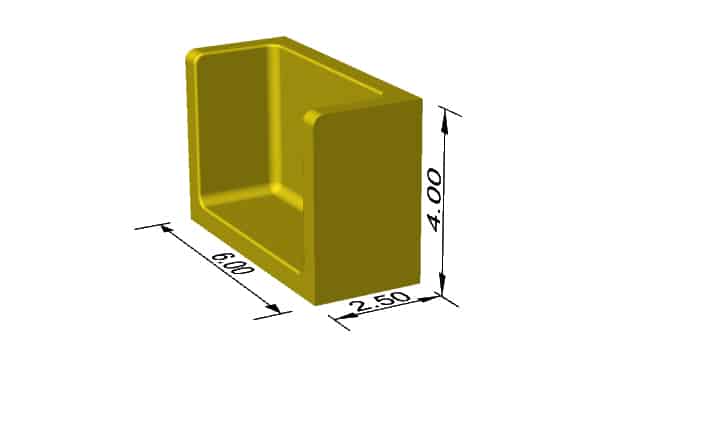

GPC-X Dimensions
Grating Collar (GPC) Downloads
Grating Deflection Test Data
Includes:
- Summary
- Uniform Load Test
- Point Load Test
- Raw Data

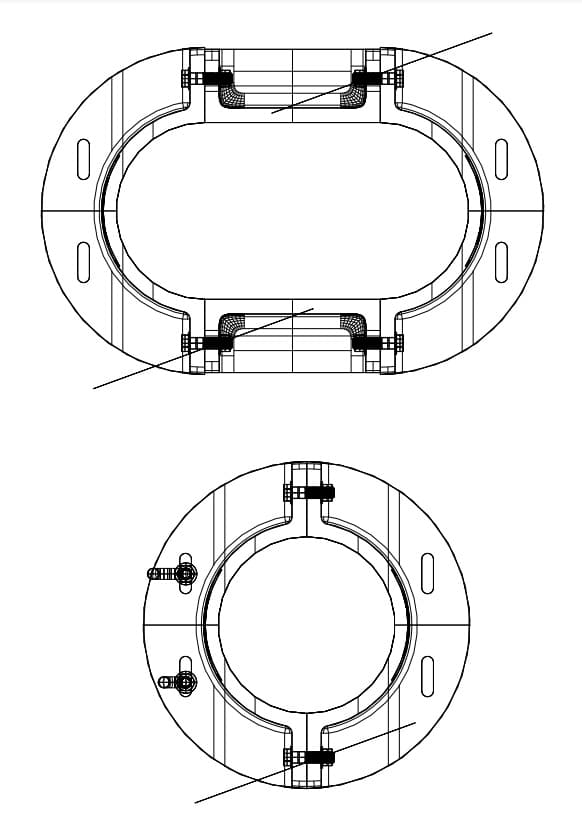

Grating Collar (GPC) Drawings
JPG Image
PDF Image
DWG (2D) (Right-click & choose “Save Target As” or “Save Link As”)
STP (3D) (Right-click & choose “Save Target As” or “Save Link As”)
Grating Collar (GPC) Installation
Layout the GPC halves around the opening. Connect the halves by using the 2 – 3/8-16 x 1 ½” hex head bolts, washers, and 3/8” nuts. Slide the 4 J-bolts (L-bolts) in the 4 slots located on the bottom of the GPC (2 slots per half). Pulling up on the J-bolt (L-bolt), catch one of the grating bars with each bolt and tighten.
Layout the T5 pieces around the pipe penetration, and insert the 3/8” x 3 1/2” long bolts through the connecting holes. Thread them, but do not tighten.
Drop J-bolts (L-bolts) in the slots located on the bottom of each T5 piece. Catch one of the grating bars with the J-bolt (L-bolt) and tighten. Do this for all T5 pieces.
Once all the J-bolts (L-bolts) are securely fastened, tighten each of the 3/8” x 3 1/2” bolts in the connecting holes.
Grating Collar (GPC) Additional Information
| Dimensions (L×W×H) (in) | 11×6×4, 6×2.5×4 |
|---|---|
| GPC Type | GPC-6 Pair & GPC-X Pair |
