CableSafe® Xtreme Safety Hooks
$21.00 – $696.00

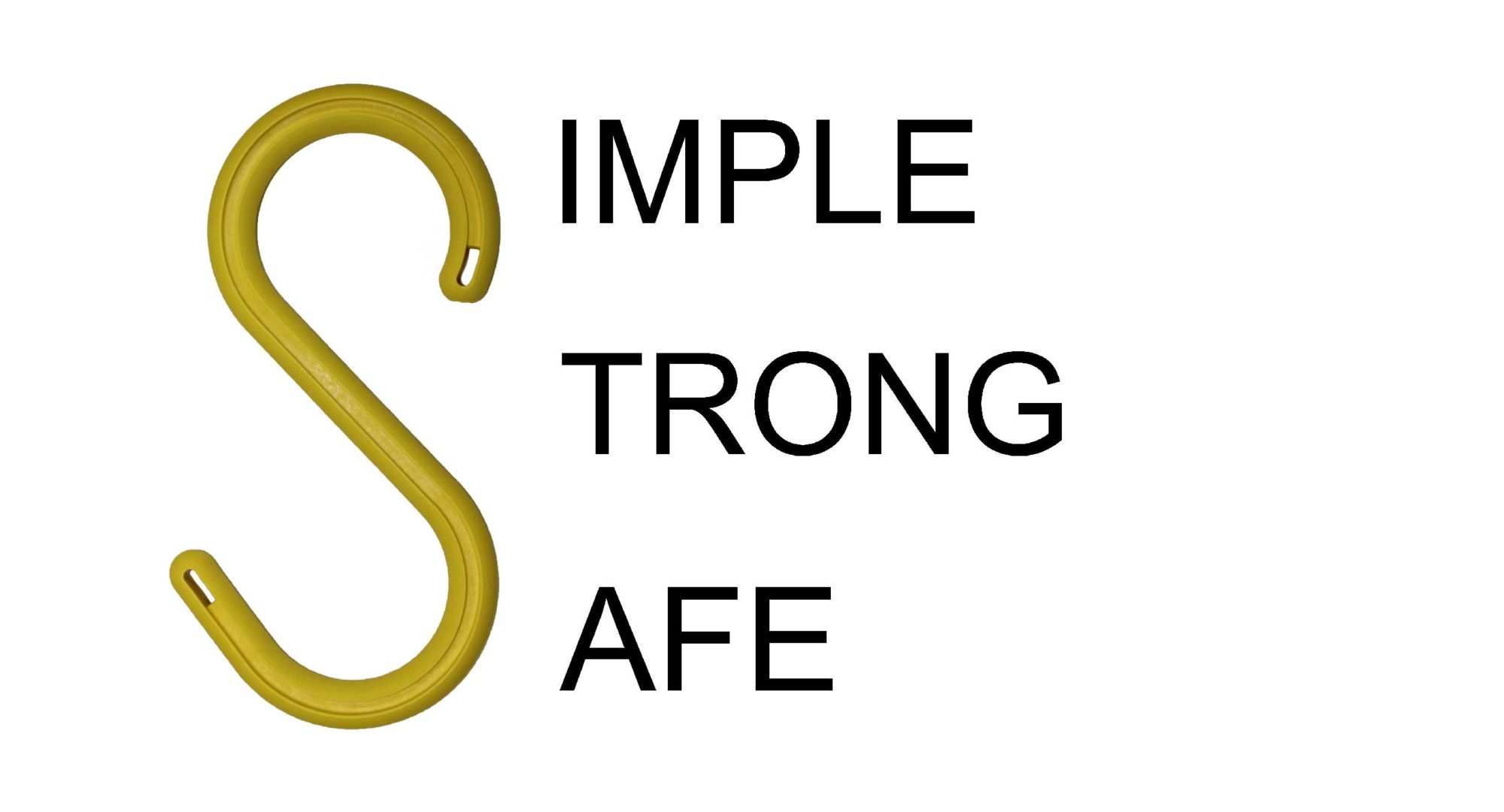

CableSafe® Safety Hooks (CS), also known as S-Hooks and Cable Safety Hooks, help with cable management and housekeeping. They are an easy and effective way to keep cords up and prevent tripping hazards. CableSafe® Safety Hooks are applied in industrial settings and work as a safety product to suspend hoses, cables and equipment, eliminating trips or other hazards caused from unsafe objects on the floor.
- Cable safety and management
- One-hand operation, simple hook application
- Safety Hook available in 4 sizes: 6”, 9”, 12”, and 15”
- Load capacity of 55 – 340 lbs.
- Able to withstands temperatures from -4 F to 392 F
- Will not fray, cut, or puncture cables
- UV Stabilized (guarantee 10 years – under normal conditions)
- Flame Retardant (UL Recognized, 94V-0 Flame Class Rating (3))
- Cold Weather Rated
- Fall prevention, reduce tripping hazards
- Great for basic and safe housekeeping practices
- Safe & effective
- Maintenance free safety solution
- Reusable safety application for various situations and locations
| 25 Pieces / Box | 55 lb | 77 lb | 220 lb | 340 lb |
| Maximum Load | 25 kg | 35 kg | 100 kg | 155 kg |
| Quantity | 6X | 9X | 12X | 15X |
| 1 – 5 Boxes | $425 | $502 | $586 | $696 |
| 6 – 10 Boxes | $406 | $479 | $559 | $664 |
| 11+ Boxes | $394 | $465 | $543 | $644 |
| Less than box | $21 | $24 | $27 | $32 |
CableSafe® Safety Hooks
| 25 Pieces / Box | 55 lb | 77 lb | 220 lb | 340 lb |
| Maximum Load | 25 kg | 35 kg | 100 kg | 155 kg |
| Quantity | 6X | 9X | 12X | 15X |
| 1 – 5 Boxes | $425 | $502 | $586 | $696 |
| 6 – 10 Boxes | $406 | $479 | $559 | $664 |
| 11+ Boxes | $394 | $465 | $543 | $644 |
| Less than box | $21 | $24 | $27 | $32 |
Xtreme
| Box Qty (25) | CS-6X | CS-9X | CS-12X | CS-15X |
| 1-5 | $404 | $479 | $563 | $672 |
| 6-10 | $386 | $457 | $537 | $641 |
| 11+ | $375 | $444 | $522 | $622 |
| Less than box | $20 | $23 | $26 | $31 |
Videos
Applications
Below are a few example images to illustrate how the S-Hooks are utilized to prevent trips, slips and falls in the workplace.
Details & Dimensions
The CableSafe Safety Hooks are available in four (4) standard sizes: 6″, 9″, 12″, and 15″.
Here are the safety hooks load ratings for each size:
| LOAD RATINGS | ||
| CS-6 | 55 lbs | (25 kg) |
| CS-9 | 77 lbs | (35 kg) |
| CS-12 | 220 lbs | (100 kg) |
| CS-15 | 340 lbs | (155 kg) |
Each S-Hook has two different opening sizes. The below graphic shows these dimensions of each CableSafe Safety Hook.
Downloads
Safety Hook (CS) Literature
Includes:
- General Information
- Sizes
- Application
- Handi Klip®
FAQ
Four sizes are available — CS-6, CS-9, CS-12, and CS-15. The number designation refers to the overall length of the hook in inches. Each larger size is thicker and stronger for carrying loads. Each larger size also has larger openings in the S-shapes.
- Principally, the hooks are employed to elevate work lines, thus avoiding tripping hazards. This feature is particularly useful in high activity areas or limited work areas such as during plant turnarounds and aboard ships and offshore rigs.
- Because the hooks are molded of a glass-filled polyester, they are non-conductive and have smooth edges that will not cut or abrade the work lines. They can be used to hold electrical lines, air lines, water hoses, welding leads, and hydraulic lines. They are very easy to install almost anywhere and can be reused on many future jobs.
Sure, you can purchase whatever number you need. We offer a less than box quantity price just for this purpose. However the price is more attractive if you purchase them in full boxes of 25 hooks. Additional discounts are available on multiple quantity box orders. Refer to our literature and price list.
No, the hooks are only intended to bear static loads. They are normally used to hold cables, wires, hoses, and other work lines off the ground and reduce tripping hazards.
- While the hooks are not designed for lifting, they can carry considerable maximum loads as shown below.
| Hook Size | Maximum Load | |
| LBS | KG | |
| CS-6 | 55 | 25 |
| CS-9 | 77 | 35 |
| CS-12 | 220 | 100 |
| CS-15 | 340 | 155 |
The glass-filled polyester material used to mold the hooks has a temperature range designated from -4° F (-20° C) to 392° F (200° C).
Yes. Each end of the hook has a small hole in it just for this purpose. Once the work lines are placed into the hook, simply use a tie wrap through the hole, across the line and around the body of the safety hook. The work lines should be secured until you release them.
.
Yes, other colors can be produced. However, this is considered a special order and a purchase of 1000 or more hooks is required. You will also need to provide payment prior to the start of producing the order.
Yes, glow-in-the-dark hooks can be produced. However this is considered a special order and a purchase of 1000 or more hooks is required. You will also need to provide payment prior to the start of producing the order.
Yes, company logos and special colors are possible. However, this is considered a special order and a purchase of 1000 or more hooks is required. You will also need to provide payment prior to the start of producing the order. Special orders like this require a one-time cost for the mold insert which will produce the company’s name and/or logo. This also will need to be purchased.
