INTREPID PG MAXIMUM SWING ROTATION, RISE, AND KICK-OUT
Intrepid PG-D Fully Extended to 48”

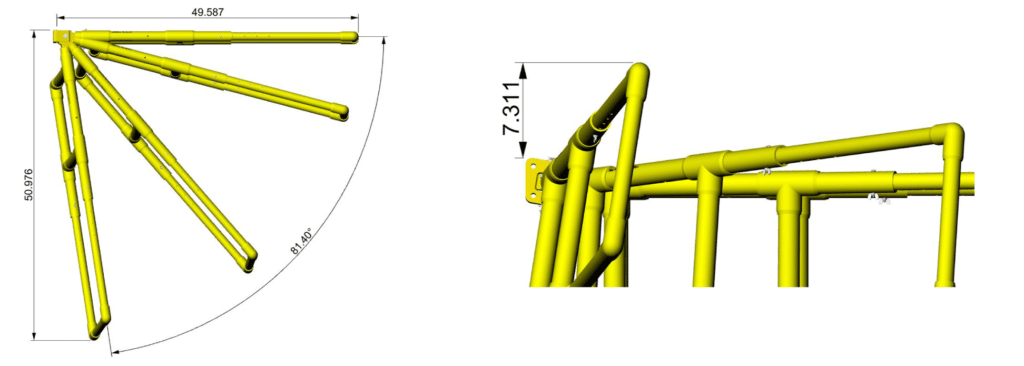

Please allow as much room as possible so that the gate can swing fully open. As illustrated to the below, when open 81.4 degrees, the gate will have a maximum rise of 7.31”.

DESIGN CONSIDERATIONS WHEN GATE IS IN A TIGHT AREA

When the Safety Gate is to be mounted in a tight space, such as a corner or narrow catwalk area, the designer must be aware of the both the rise and the kick-out caused by the swing rotation of the self-closing gate. This is depicted in the the below drawings.
